Q-teach Human CO2 and O2 Package

Home Products Q-teach Packages Q-teach Human CO2 and O2 Package

The Q-teach Human CO2 and O2 Package is designed for teaching the principles of human respirometry through measurements of CO2 and O2 exchange in mixed expired air.  In addition this package allows spirometry measurements of human lung capacity and volume. This package includes everything required by the instructors: NDIR CO2 analyzer (10%), a galvanic cell O2 analyzer (25%), gas pump with a flow monitor (1LPM), Spirometer with nose-clip and disposable bacterial filter, wireless heart rate monitor, breath mixing gas bags, face masks with mask holder and non-rebreathing valve with adapters.  Data is collected via two data interfaces and software.  Two experimental files with calculation templates are also included.  Operational and Laboratory  manuals are provided on a USB disk. The laboratory manual includes descriptions of sample experiments that may be done with this package.  This manual is provide in editable format so instructors may easily add or edit information.  The operational manual describes all of the components in this package and provides instructions on how to use them.


  • Q-teach 103 CO2 Analyzer 10% with soda lime and drying columns
  • Q-teach 300 O2 analyzer 25% with drying column
  • Q-teach 201 Pump Flow Monitor 1LPM
  • S184 Spirometer with 3 nose clips and 3 bacterial filters
  • A152 Disposable mouth pieces for the Spirometer (10)
  • S182 Wireless heart rate monitor
  • A505 Face masks (2L and 2M)
  • A506 Neoprene mask holder
  • A508 Non-rebreathing valve with bacterial filter adapter, spirometer adapter, mixing bag adapter and 2 valve leaflets (plus 2 extra leaflets and insertion tool)
  • G212 Water trap for condensing ice bath
  • C610 LabQuest Mini data interfaces x 2 (6 analog channels)
  • 901 Logger Pro Software
  • C404 disk with operational and laboratory experiments manuals and files
  • Q-teach Kit  Accessories for the package (tubing, filters, connectors, screwdriver, 2 x 3-way valve, wrench, Qubitac sealant)

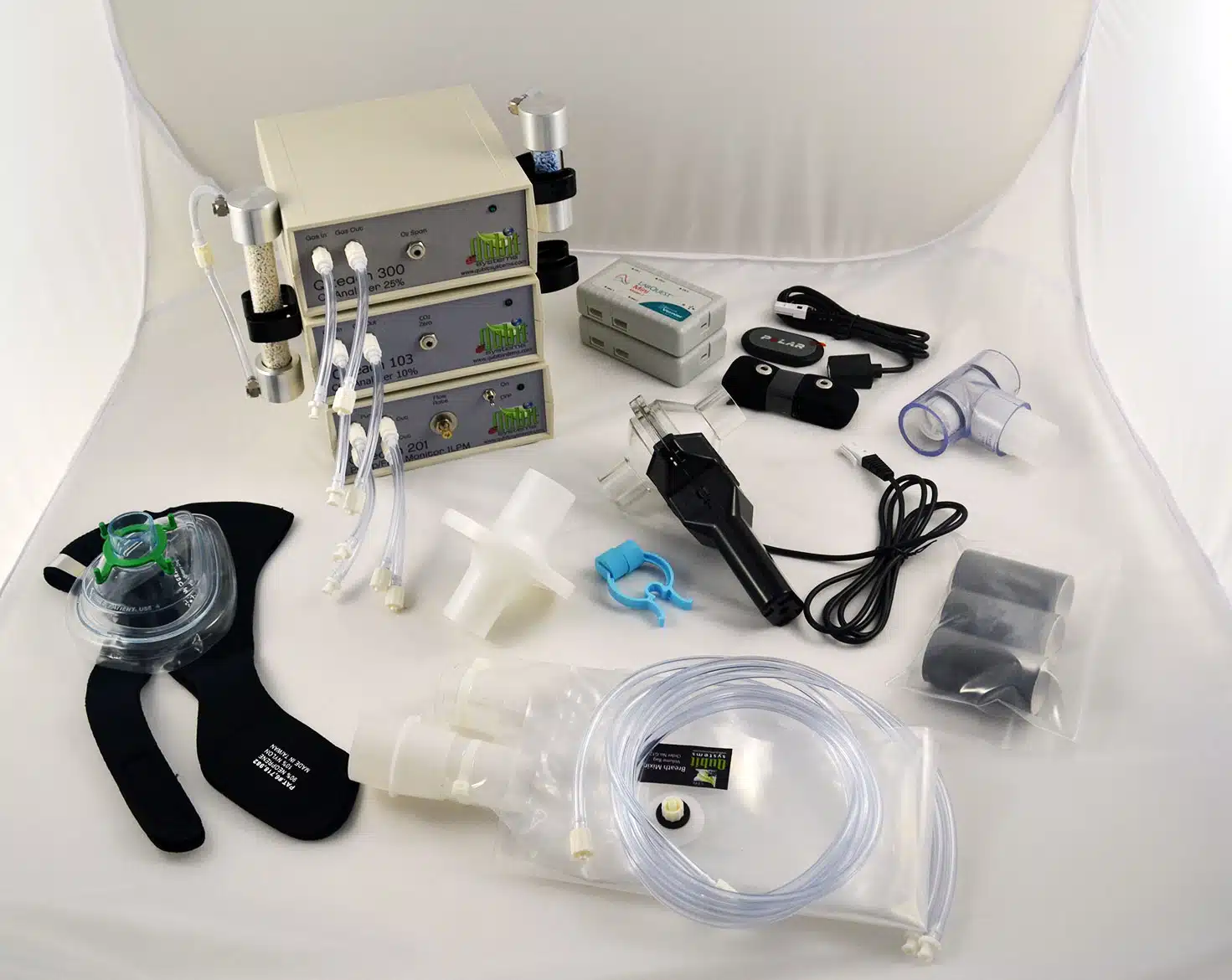

Q-teach human CO2 and O2 measuring package

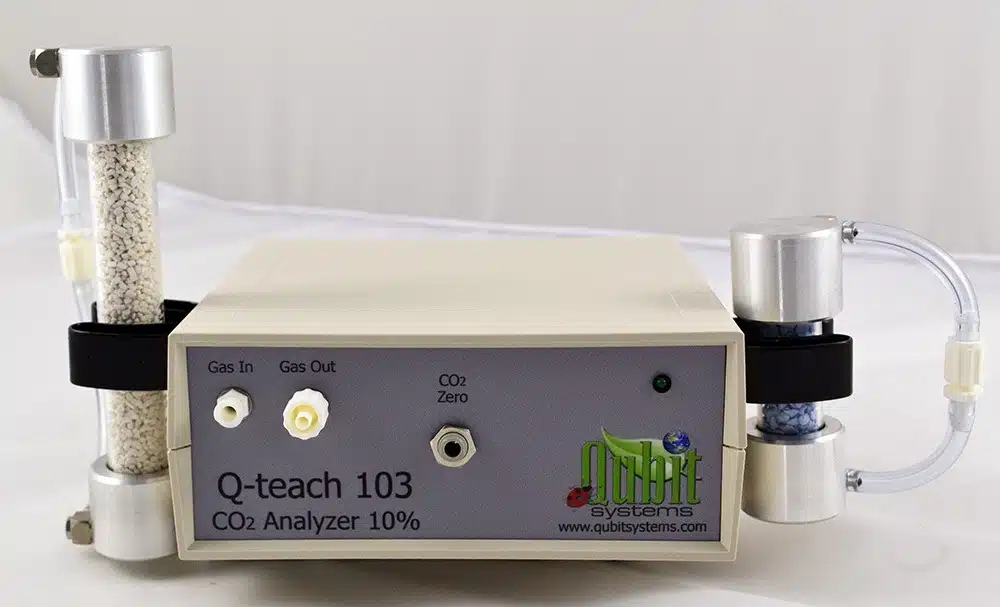

Q-teach 103 CO2 analyzer 10%

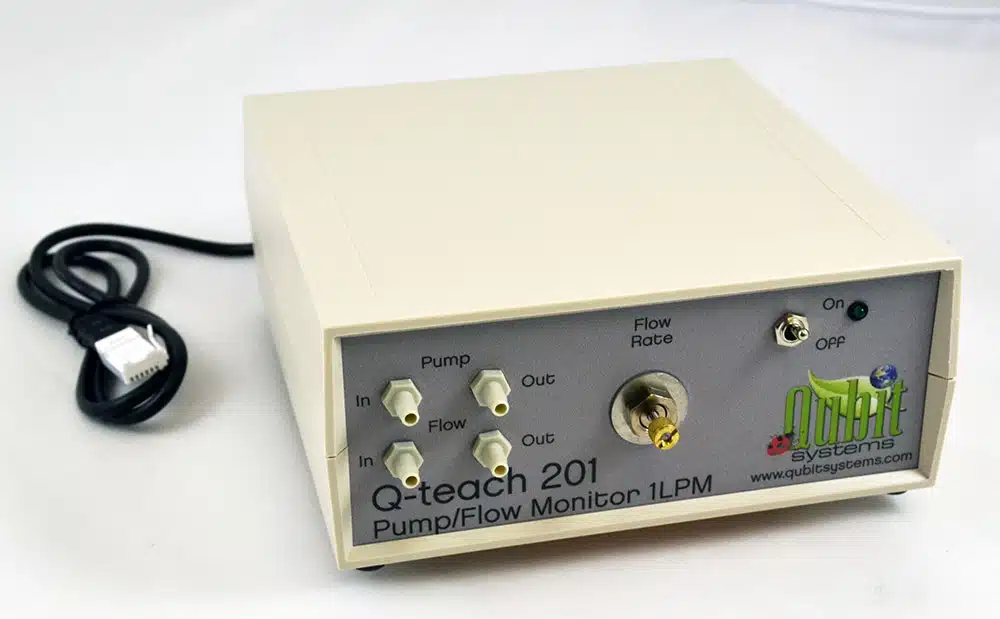

Q-teach 201 pump and flow 1LPM
Q-teach 300 O2 analyzer 25%

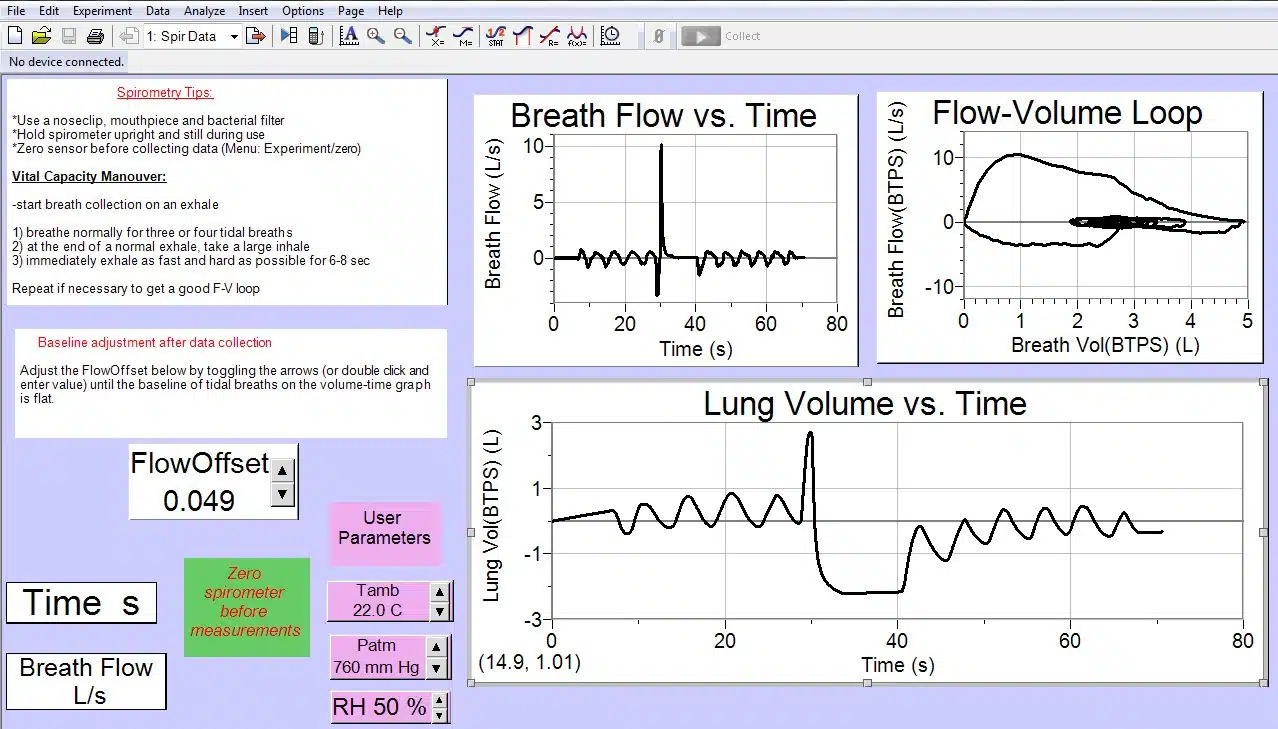

Spirometry data

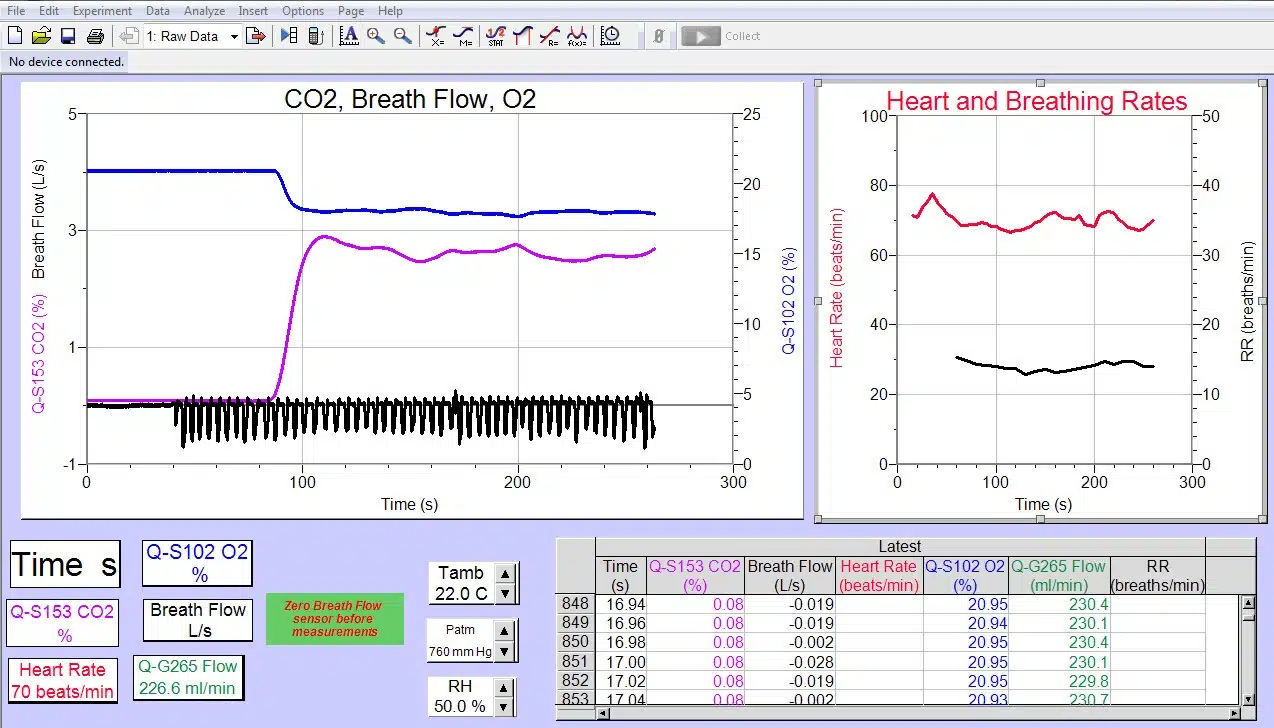

human respirometry data
