Q-S207 EKG/EMG Sensor

Home Products Electrophysiology Q-S207 EKG/EMG Sensor
Q S207 EKG EMG Sensor

Qubit Systems’ surface Q-S207 Electrocardiogram/Electromyogram (EKG/EMG) Sensor measures voltage waveforms produced during the contraction of the heart (EKG) as well as during other muscle contractions (EMG).

The action potential during heart muscle contraction or other muscles’ contraction can be recorded by surface electrodes as electrical activity at the skin surface. The electrical signal is recorded by the C610 LabQuest Mini data interface and C901 Logger Pro software but other data interfaces with software can also be used to record 0-5 V analog signal.

  • Easy to use, safe, electrode based system for measurements of muscle contraction
  • Two setting available: EKG (heart muscle contraction) and EMG (contraction of other muscles)
  • Calculations of Heart Rate in software (optional)
  • Optional Data interface and software available
  • Manual with suggested experiments included

Human electrophysiology teaching and research:

  • various studies of electrical activity of muscles with various stimuli
  • studies of heart muscle responses before and after exercise or mild stimulants
  • power supply: 9V DC, 560mA
  • units: Volts
  • resolution: 0.0012 Volts
  • accuracy: 1% Full Scale, or better
  • offset: N/A
  • gain: 1076
  • Cut-off Frequency fc:
  • Low Pass = 1.6kHz, fc
  • High Pass = 0.2Hz
  • size (h/w/l) cm: 2.8/6.2/9.2
  • weight (g): 210
  • materials: plastic (black)
  • subject isolation: 1500 V rms
  • warranty: 1 year

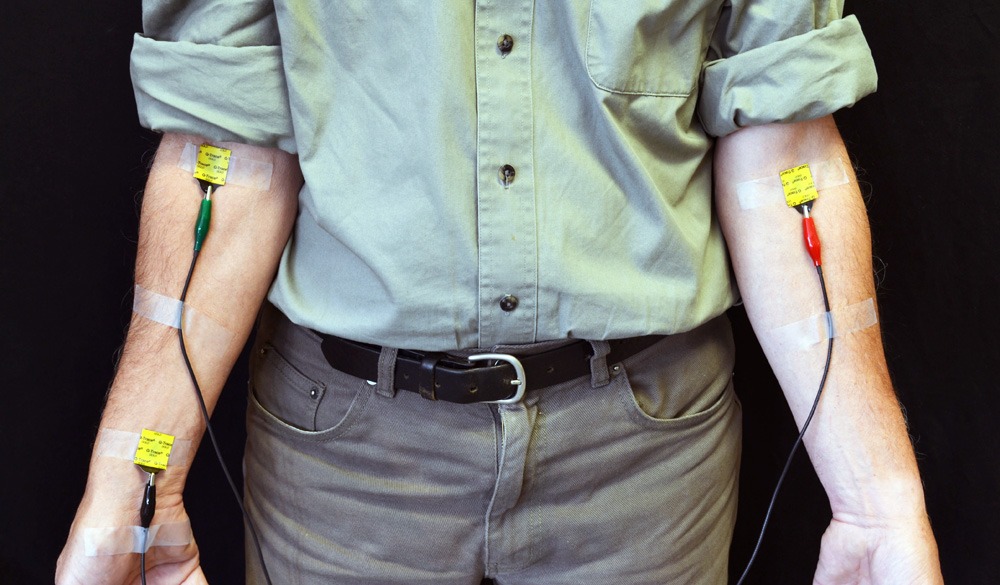

placement of electrodes for EKG
placement of electrodes for EKG

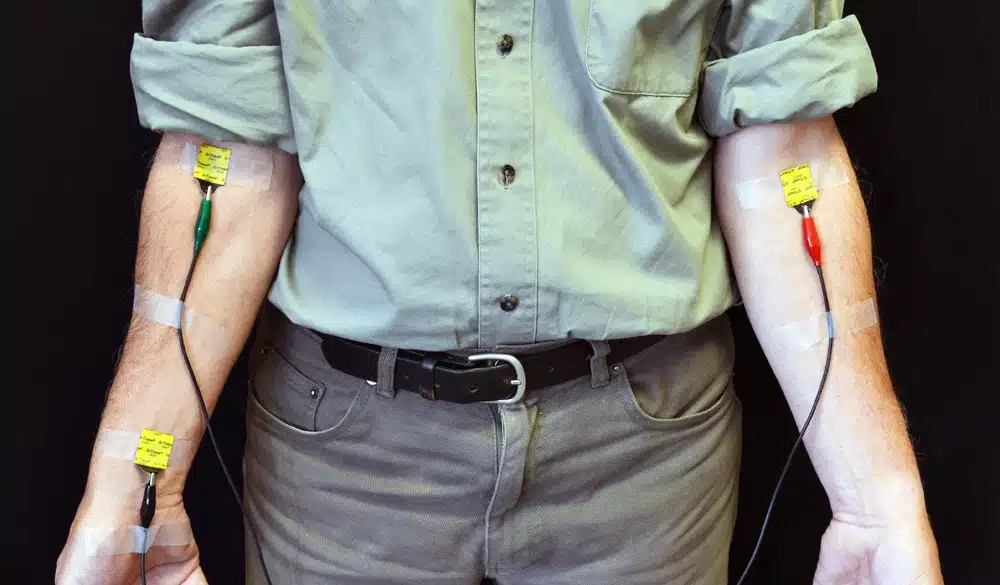

placement of electrodes for EKG
placement of electrodes for EKG
Two position switch available for easy change
Two position switch available for easy change between Electrocardiograph and Electromyograph measurements


Sample EKG Data
EMG Data

Contact Qubit Systems

To get your free manual and more information on this product.
